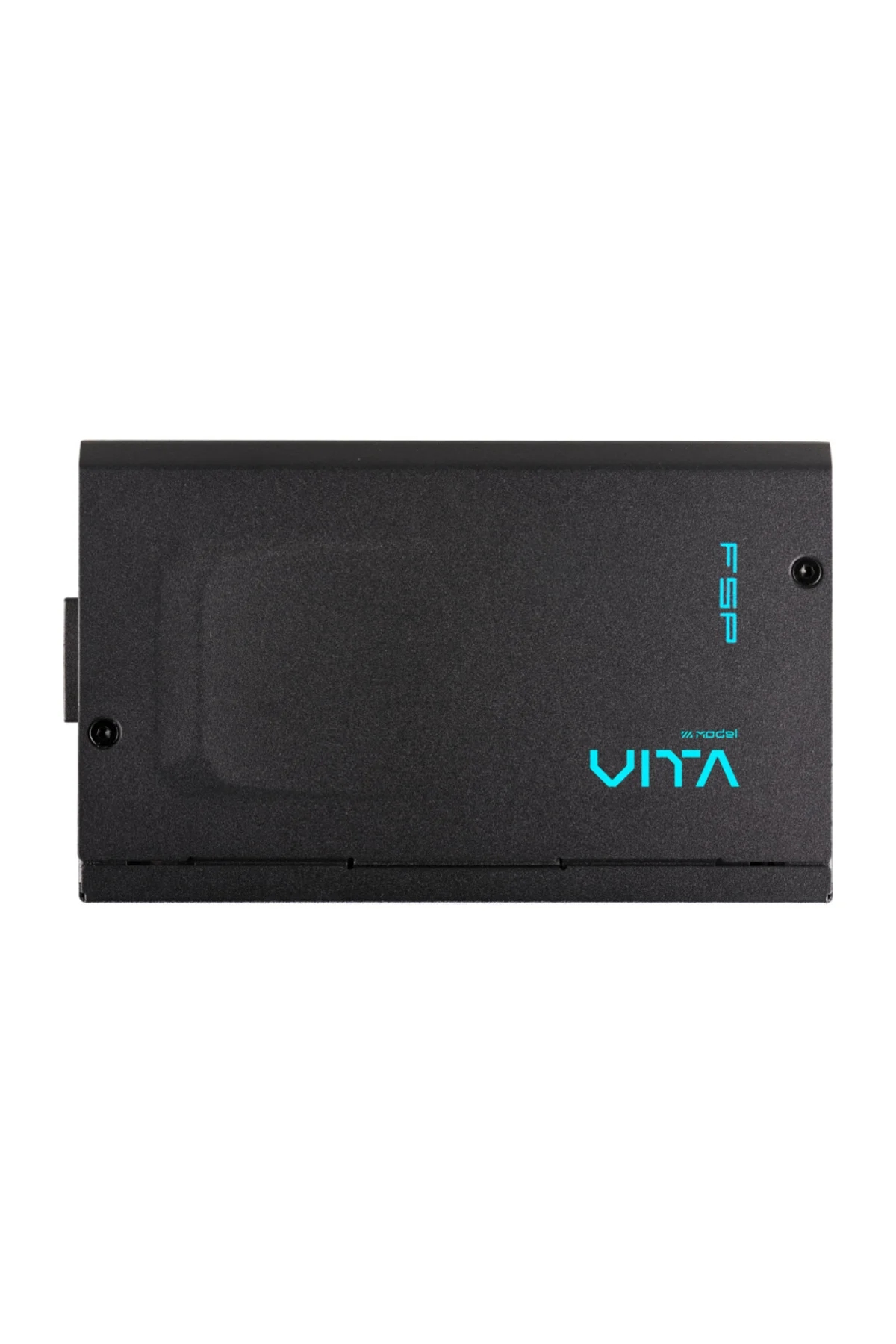

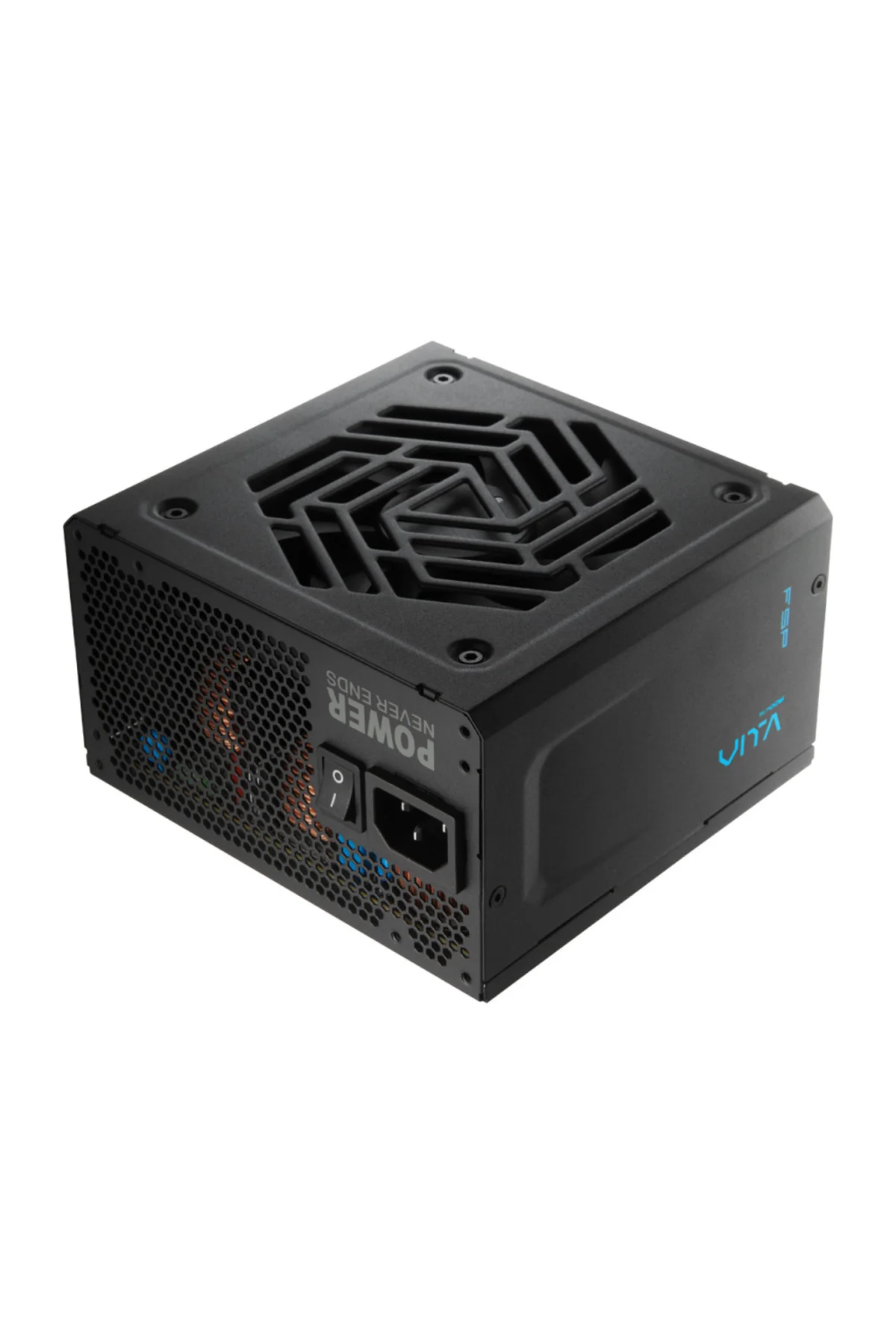

AyrStore FSP VITA 850BD, 850W, 80+ BRONZ, Aktif PFC, GAMING, ATX, Power Supply (PSU)
En geç 1 Ağustos Cumartesi kargoda
>
| Fan Ebatı | : | 12 CM |
| Güç | : | 850 W |
| PFC | : | AKTİF PFC |
| Power Form | : | ATX |
| Verimlilik | : | 80 PLUS |
>
>
>
VITA BD 850W
>
>
- Efficiency ≧ 88% at typical load
- 80 PLUS ® 230V EU bronze certified
- Hold up time ≥ 12ms at 100% load
- Premium, all-black cables for easier cable routing
>
>
>
>
>
>
- Complete protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
>
>
>
>
>
>
>
>
>
>
>
>
>
>
> VITA BD 850W
>
>
>
Specifications
FAQ
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
Complies with Intel® Power Design Guide ATX 3.1
>
VITA BD series is compatible with the latest ATX 3.1 regulation to support up to 200% power excursion and with the new interface of PCIe 12V-2x6 connector to ensure peak with future hardware upgrades.
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
5V & 3.3V DC to DC Circuit Design
>
Increase the efficiency and stabilize the output voltage to ensure system stability.
>
>
>
>
>
>
>
>
High Efficiency in Bronze-certified
>
Certified by world-class organizations 80 PLUS ® 230V EU Bronze certification for lower power loss, less heat, and quieter operation.
>
>
>
>
>
Powerful Single 12V Rail
>
Modern CPUs and graphics cards can draw significant amounts of power, especially during peak loads., a single 12V rail PSU offers a good balance of simplicity, power delivery capability, and stability.
>
>
>
>
>
>
>
>
>
>
>
>
>
>
Premium, Black Flat Cables
>
Featuring improved black, flat cables that are soft and easy to bend, users can manage them more easily, saving time and creating more space for optimal cooling in your PC build.
>
>
>
>
>
>
>
>
>
>
>
>
Premium Bulk Capacitor
>
The bulk capacitor inside serves to support working under an extremely harsh environment, such as with high temperatures, peak voltage fluctuations. It stabilizes the for high reliability that your system can count on.
>
>
>
>
>
>
>
>
>
Stay Cool, Stay Soft
>
Built with optimized thermal solution and an advanced 120mm fan for cooler components and quieter operation.
>
>
>
>
>
>
>
>
>
>
>
>
>
OVP
>
Over Voltage Protection
>
>
>
>
>
>
>
OCP
>
Over Current Protection
>
>
>
>
>
>
>
OPP
>
Over Power Protection
>
>
>
>
>
>
>
OTP
>
Over Temperature Protection
>
>
>
>
>
>
>
SCP
>
Short Circuit Protection
>
>
>
>
>
>
>
UVP
>
Under Voltage Protection
>
>
>
>
>
>
>
SIP
>
Surge and Inrush Protection
>
>
>
>
>
>
>
NLO
>
No-load Operation
>
>
>
>
>
>
>
>
>
Fortress-level Protection
>
Our comprehensive circuit shields your valuable components from harm.
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
MB 24 PIN
>
> 1 cable
>
>
>
>
> 1 connector
>
>
> 550 mm
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
CPU 8 PIN
/ CPU 4 4 PIN
>
> 1 cable
>
>
>
>
> 8 PIN x1 / 4 4 PIN x1
>
>
> 755 mm
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
PCIe 6 2 PIN
>
> 2 cable
>
>
>
>
> 4 connector
>
>
> 655 mm
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
PCIe 12V-2x6
>
> 1 cable
>
>
>
>
> 1 connector
>
>
> 650 mm
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
SATA
>
> 1 cable
>
>
>
>
> 4 connector
>
>
> 965 mm
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
MOLEX / SATA
>
> 1 cable
>
>
>
>
> MOLEX x2
>
>
> SATA x2
>
>
> 965 mm
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
>
AC/DC
>
>
| AC Input | 200-240V~ 6A 50-60Hz | ||||
| DC Output | 3.3V | 5V | 12V | -12V | 5Vsb |
| Max Output Current | 20A | 20A | 70.83A | 0.3A | 2.5A |
| Max Combined Power | 100W | 850W | 3.6W | 12.5W | |
| Total Power | 850W | ||||
>
>
>
>
>
>
>
>
Specifications
>
>
| Model | VITA-850BD |
|---|---|
| Rated Output Power | 850W |
| Form Factor | ATX12V V3.1 |
| 80 PLUS Certification | 230V EU Bronze |
| Input Voltage | 200-240V |
| Input Current | 6A |
| Input Frequency | 50-60Hz |
| PFC | Active ≧ 0.9 |
| Efficiency(at typical load) | ≥88% at typical load |
| Fan Type | Sleeve Bearing, 120mm |
| Dimensions(L x W x H) | 140×150×86 mm |
| Operation Temp. | 40°C |
| Protection | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Warranty | 5 Years |
>
>
>
>
>
>
>
>
